Manual Particle Extractor

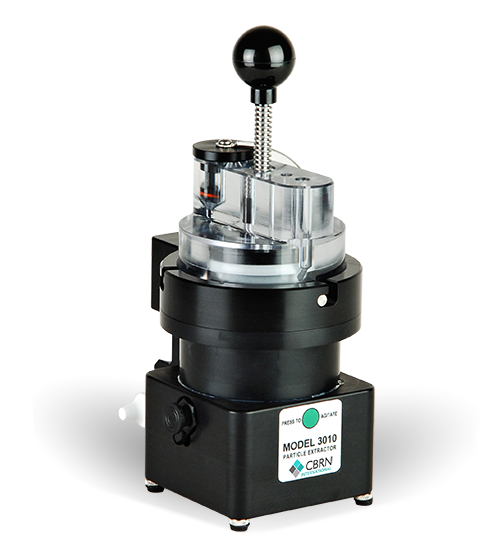

The SASS® 3010 is used to extract aerosols captured by CBRN International’s electret filters. The SASS 3010 is designed for use with our filter-based air samplers: the SASS 3100 Dry Air Sampler, the SASS 4000 High-Volume Aerosol Concentrator, or the SASS 4100 Two-Stage Collector.
Captured particulates can be difficult to remove from filters because induced dipole fields create a strong holding force and must be neutralized. Once particulates have been released, they must then be removed from within the fibrous filter matrix and collected in a small amount of sample fluid.
These processes are efficiently performed in a matter of 1 to 2 minutes using the SASS 3010 Particle Extractor, transferring particles to a small fluid volume for later analysis.
Designed specifically for use with CBRN International air samplers: SASS 3100, SASS 4000, or SASS 4100.
Ease of Operation
The SASS 3010 extracts particles from electret filters quickly and easily with its simple manual operation.
With its compact design and simple battery-powered operation, the SASS 3010 is perfect for field work.
- Fast and efficient extraction from "electret" filters
- Extraction efficiencies are typically in the range of 70 to 80%
- Simple to operate
- Powered by two D-cell batteries
- Homeland security
- Academic research
- Food safety
- Clean rooms
- Public health and medical facilities
- Indoor air quality
|Filter compatibility:||For use with SASS 3100 and SASS 4100 electret filters|
|Extraction method:||Acoustic vibration of the fluid-saturated filter is followed by pneumatic and mechanical counterflow-driven discharge of the suspended aerosol particles.|
|Extraction efficiency:||60-80% typical|
|Residue, run-to-run:||1.1% with dry wiping, and
0.01% to 0.1% with a 5 ml flush
|Extraction time:||1 to 2 minutes, typical, with a flush cycle.|
|Extraction fluid:||A pre-filled dropper bottle provides enough buffered extraction fluid to make a 5 ml sample.|
|Sample fluid storage:||The extraction fluid bottle is also used for fluid sample storage upon extraction completion.|
|Physical size:|| Body: 10.2cm (W) x 13.4cm (D) x 14.5cm (H)
Plunger: A 7.8 cm-high plunger protrudes from the extractor’s top surface
|Electrical power:||Two size “D” primary batteries.|
|Operating temperature range:||0°C to 70°C|
CBRN International reserves the right to change specifications without prior notice.
