For Critical Infrastructure Protection

ASAP V Multi-Threat system installed in Kazan bus terminal

ASAP V™ for Critical Infrastructure Protection is a modular, multi-sensor surveillance system designed for subways and other high-value/high-risk areas. Sensor modules are available that can detect a wide range of threats, from the presence of nuclear, biological and chemical agents, to smoke and fire.

ASAP V/CIP systems may be configured to uniquely match your particular concerns and budget. A nodal approach is used that allows local or remote monitoring of a single suite of detectors or the monitoring of a number of nodes in different locations. Information from the individual nodes can flow to a central PC-based monitoring system via secure optical fiber, cell phone, Internet, Bluetooth, or other appropriate data linking technology. CBRN International can supply the following monitoring capabilities: NBC threats, explosives, smoke and fire, video and sound, intrusion, thermal imaging and meterological data.

Large-Scale CBRN Protection for Infrastructure

  • Features
  • Applications
  • Specifications


Product Features

  • Chemical, biological, and nuclear threat detection
  • Explosives detection
  • Smoke and fire detection
  • Video and sound monitoring
  • Intrusion detection
  • Thermal imaging
  • Meteorological data
  • X-ray detection
  • Large area air circulation and sampling methods
  • Biological and radiological sample collection and storage



  • Transit systems/subways
  • Critical infrastructure protection
  • Homeland security
  • Air quality



Characteristic Description
Use profile Automated/programmed/continuous identification of targeted toxins, viruses, bacteria, spores, industrial chemicals, explosives, and nuclear materials. Batch sample examination also supported.
Duty cycle Continuous. Functional availability >99.3% (1).
Air sampling rate 30,000 liters/min.
Toxic Industrial Chemicals Subsystem Ion mobility spectrometry or long baseline infrared spectrometry. Gas libraries of 15 to 40 targets, depending on technology used. Analysis time less than 10 seconds.
Explosives Subsystem Ion mobility spectrometer; analysis time = 8 seconds.
Nuclear materials Subsystem Area and portal styles available. Typical specifications: 0.05 to 3.0 MeV gamma detection window. Detect 360 kBq of Cs-137 and 6 gm Pu(2); neutron detection optional.
Video Subsystem Up to1280 x 720 (HDTV) resolution + sound
Thermal Video Subsystem Up to 640 x 480 (VGA) + sound
X-Ray Subsystem2
Sensitivity 40 gauge wire typical, 38 guaranteed
Penetration 39 mm steel typical, 37 mm guaranteed
Contrast Sensitivity 24 visible levels, 4096 gray levels
Bioassay Subsystem
Bioidentification - Manual Immunoassay test strips and machine reader: 12 minutes typical overall time
Bioidentification-Automated Four simultaneous assays performed on 1 cc samples using a credit card-size assay coupon. Coupon and associated re-useable reagents provide from 20 to 30 assays over a 48 hour use period. 15 to 30 minute combined collection and identification period
User Interface Windows® user interface.

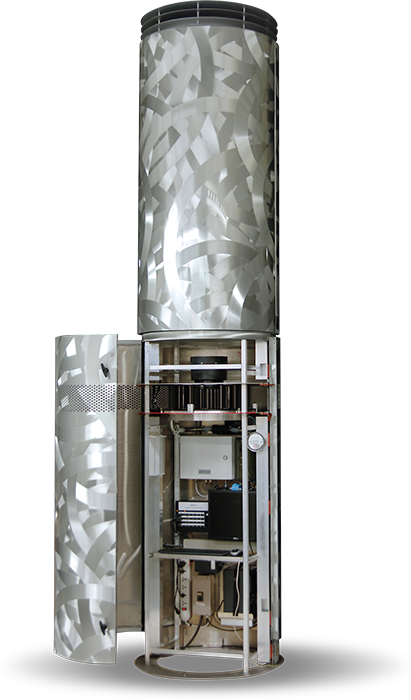

Physical Size Depends on user requirements. Architectural column-style design is typically 0.9 meters diameter x 3 to 4 meters high.
Temperature range Operating: For systems that do not support liquid-based bioassays, -20° to 60°C; for liquid based bioassay systems, above freezing to 50°C.
Alarms Large green/amber status light; annunciator optional.
Communication TCP/IP Connectivity.
RS-232 bi-directional serial link is standard.
Data storage/programmability Raw/processed data storage at each monitoring node. Operating protocols are reprogrammable through an external communications link.
Power Consumption 750 watts typical with 30,000 LPM air circulation system installed.
Humidity 5% to 95%, non-condensing.


(1) Functional availability is the percentage of total work time the system is functional, averaged over a 90 calendar day period.

(2) Search volume: 0.7m diameter X 2m length. Object speed 5 Km/hr. Detection probability 50% at 95% confidence level, 0.17 false alarm rate, 20 ur/hr. background.

CBRN International, Inc. reserves the right to change specifications or product source without prior notice.
